Description
Overload · Frequency Converter · Reliable · Low Maintenance

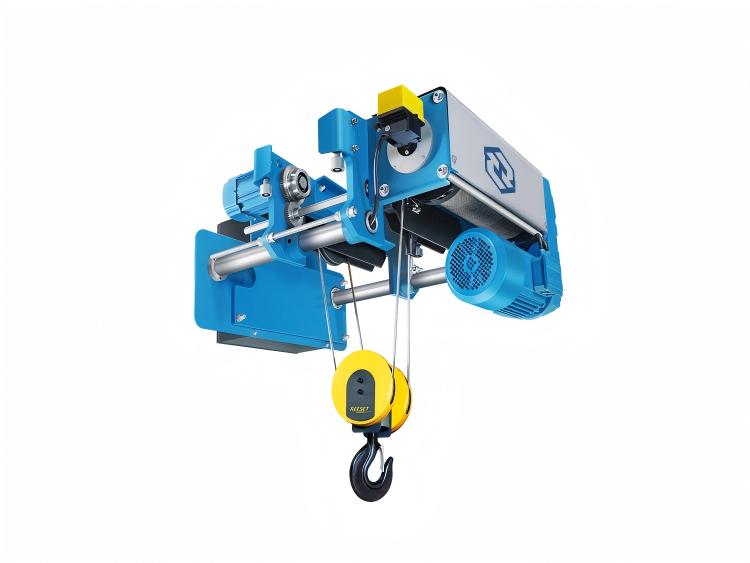

This 15-ton European-type rope tensioning and feeding unit is specially designed for demanding industrial applications. With a 15-ton load-bearing capacity and a compact structure, this equipment is highly suitable for use in mechanical manufacturing plants, steel mills, and heavy machinery workshops. This system features short start-up time, precise positioning, and long service life. Through variable frequency control for lifting and operation movements, smooth and low-wear load replacement can be achieved.
Advantages
Smooth starting and precise load positioning via frequency inverter. Reduces load sway and enhances safety.
Two independent brakes (service brake + safety brake) ensure maximum safety, even during power failures.

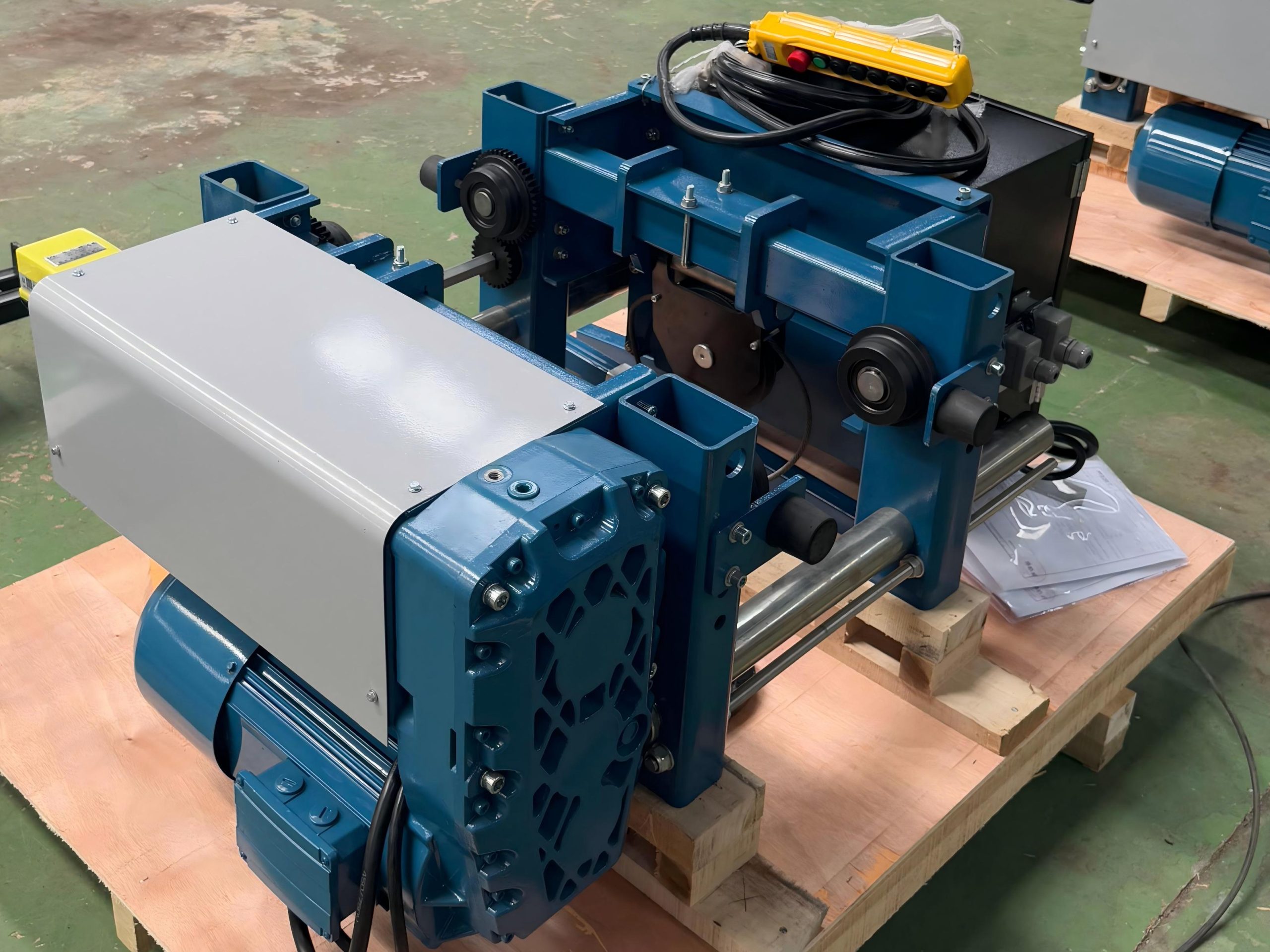

Compact trolley design increases hook path – ideal for low-profile buildings.
Centralized lubrication block and easily accessible wear parts reduce downtime.
Designed for multi-shift operation (FEM 2m), suitable for high cycle rates.
Precision-geared transmissions and sound-damped wheels significantly reduce noise levels.
Specification
| Capacity（t） | Workingclass | Lifting height(m) | Lifting speed(m/min) | running velocity(m/min) | Lifting power(kw) | operating powe(kw) |
| 3 | M5 | 6 | 5/0.8 | 2-20 | 3.2 | 0.44 |
| 9 | ||||||
| 12 | ||||||
| 15 | ||||||
| 18 | ||||||
| 5 | M5 | 6 | 5/0.8 | 2-20 | 4.9 | 0.44 |
| 9 | ||||||
| 12 | ||||||
| 15 | ||||||
| 18 | ||||||
| 21 | ||||||
| 10 | M5 | 9 | 5/0.8 | 2-20 | 9.8 | 0.96 |
| 12 | ||||||
| 15 | ||||||
| 18 | ||||||
| 24 |
Applications
Heavy Industry & Steel Mills: Transport of rollers, molds, and heavy machine parts.
Machinery Manufacturing: Assembly of large motors, pumps, and gearboxes.
Concrete & Precast Plants: Handling of steel mesh and formwork.
Metal Processing: Positioning of sheets and profiles at presses and bending machines.
Repair & Service Operations: Dismantling and assembly of heavy machinery.
Customization Options
| Lifting Capacity | 0.5t / 1t / 2t / 3t / 5t / 10t / 16t / 20t, and more. |
| Lifting Height | Standard: 6m, 9m, 12m, 18m, 24m, 30m; Non-standard customization available. |
| Lifting Speed | Single speed / Dual speed (e.g., 8/2 m/min) / VFD controlled for variable speed. |
| Trolley Type | Motorized trolley / Manual push trolley / Fixed mounting (without trolley). |
| Control Mode | Pendant push-button control / Wireless remote control / Cabin operation. |
| Power Supply | 380V / 400V / 415V / 480V / Custom voltages available; 50Hz or 60Hz. |
| Working Class | M3 / M4 / M5 (Select based on frequency and intensity of use). |
| Protection Rating | IP44 / IP55 / Explosion-proof design available. |
| Environmental Adaptation | Standard indoor type / High-temperature resistant / Dust-proof / Corrosion-resistant. |
Why Choose Us?
| Project Experience | Over 15 years of experience in heavy load handling industries. |
| Individual Design | Static calculation and design according to your building specifications. |
| Safety Certifications | CE conformity, German Operational Safety Ordinance (BetrSichV), and DGUV certified. |
| Load Testing | Every system is tested at 125% of rated load before delivery. |
| Comprehensive Service | Support for installation, commissioning, and regular maintenance. |

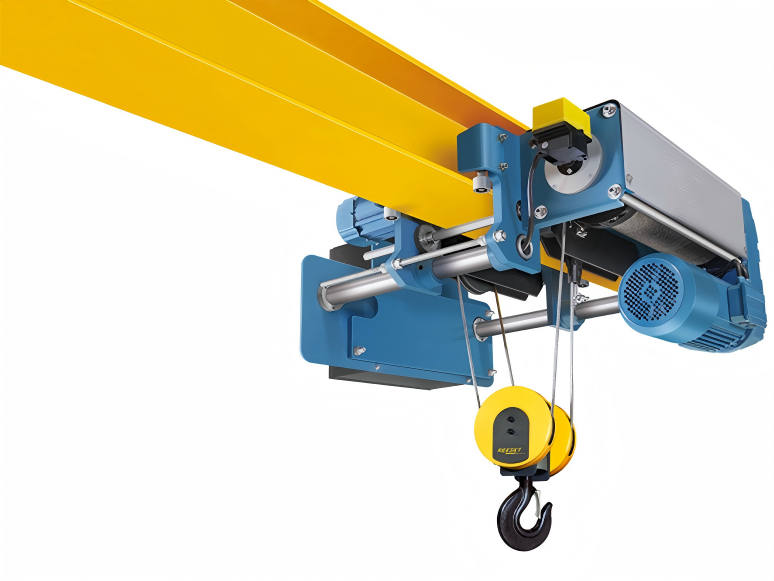

We will recommend the most suitable single girder wire rope electric hoist based on your specific site conditions, lifting frequency, load requirements, and operational needs. Please share your workshop layout and a description of your application—we will design a cost-effective, safe, and durable lifting solution for you.
We don’t just provide products—we deliver safe, efficient, and sustainable lifting solutions built to last.
