Description
Mobile & Flexible · Ready to Use · Light Load Efficient · Versatile Multi Scene Work Assistant

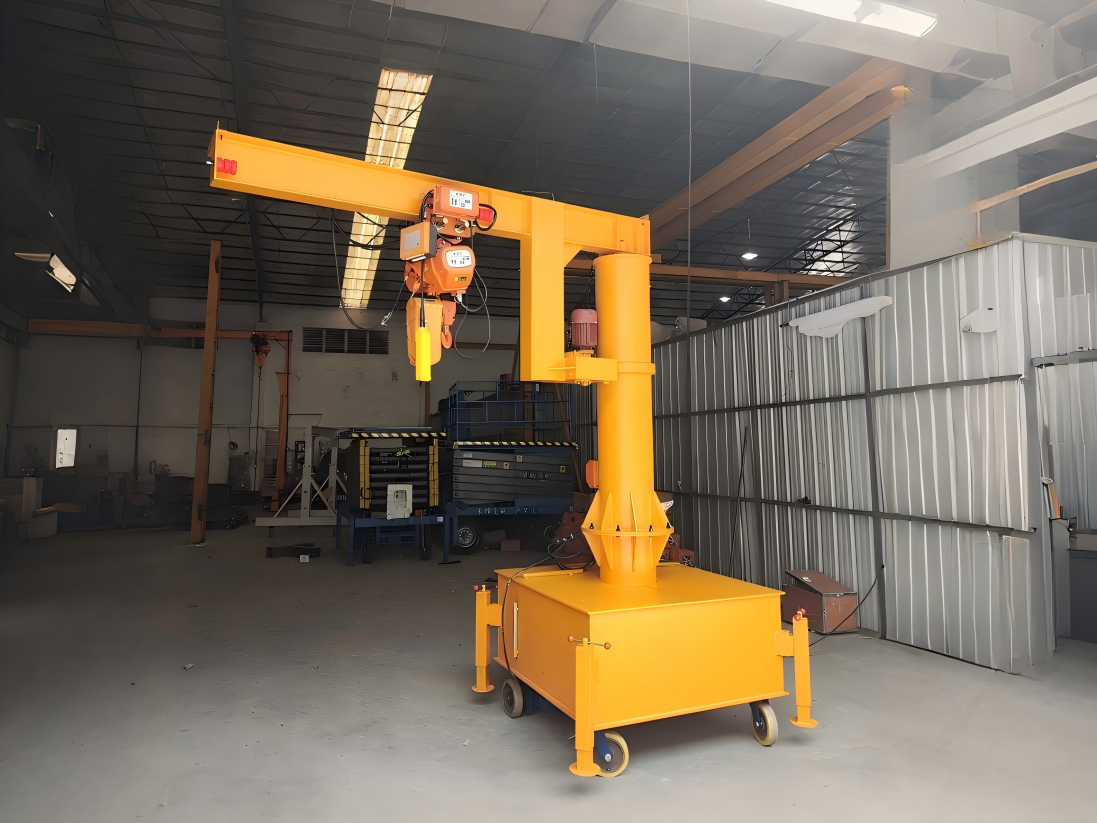

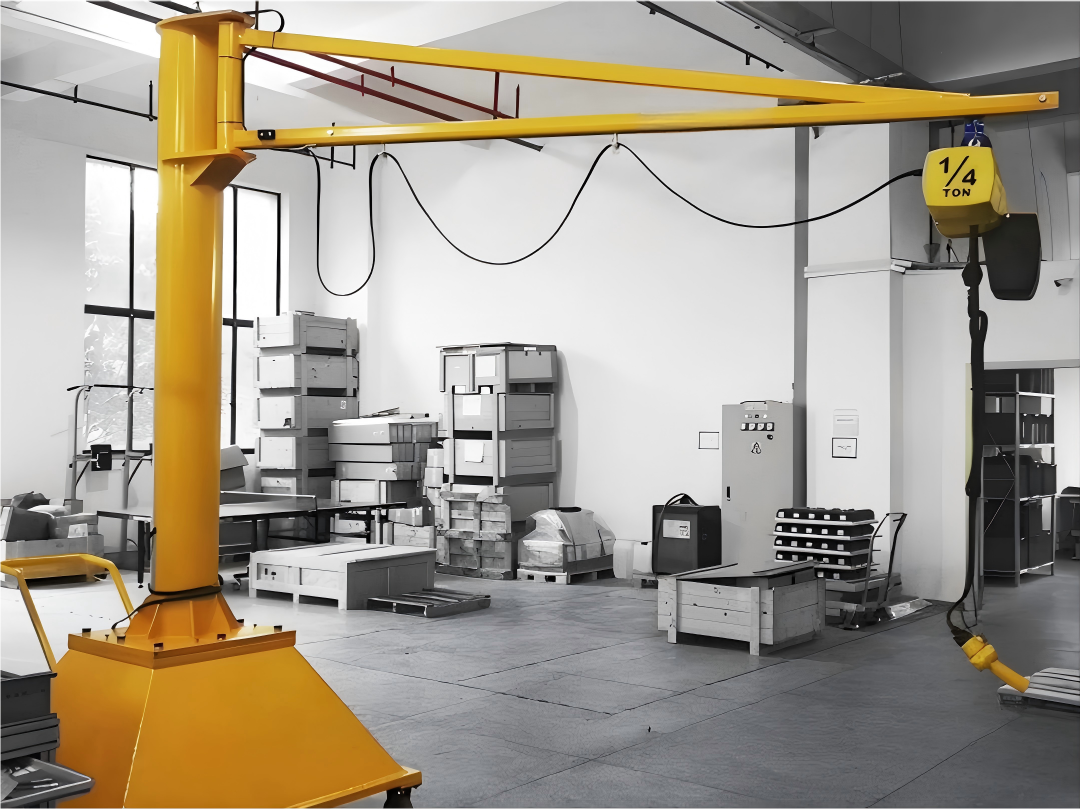

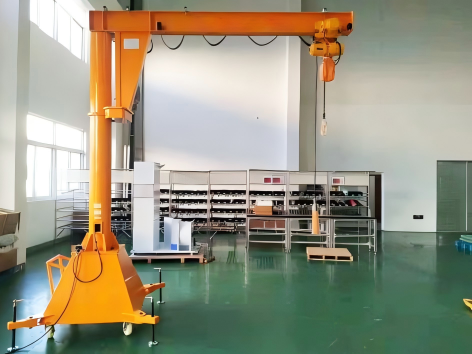

The portable mobile column jib crane is a light duty lifting device that combines column stability with mobility. It consists of a movable column with casters, a foldable or detachable jib, a rotation mechanism, and an electric hoist. Requiring no fixed installation, it can be moved to different work points and deployed quickly, making it suitable for light load lifting tasks that require temporary or frequent position changes in workshops, warehouses, outdoor repair sites, and similar environments.
Advantages
Equipped with heavy duty casters and brakes for easy positioning; ready to use without installation.
Jib can be folded or modularly disassembled; column can be laid down for transport and storage.
Casters suitable for smooth concrete, epoxy floors, steel plates, etc.; optional solid or polyurethane wheels.
Can be configured with batteries or connected to site power, power source limitations for truly mobile lifting.
Low-center-of-gravity design with adjustable support legs enhances stability during lifting and retracts for mobility.
Application
- Multi-Station Workshop Production:Temporary material transfer between equipment, mold changes, support.
- Flexible Warehousing & Logistics: Temporary loading/unloading points, inventory checks, rack organizing, packaging-area handling.
- Outdoor & On-Site Maintenance: Vehicle repair, equipment installation, small component lifting on construction sites, exhibition setup.
- Emergency Repair & Rescue:Equipment relocation during incidents, obstacle clearing, temporary lifting support.
- Laboratories & School Workshops:Teaching demonstrations, equipment lifting, maker-space project handling.
Customization Options
| Mobile Chassis Configuration | Four casters (two fixed, two braked) / all swivel braked casters / crawler type mobile chassis / manual hydraulic leveling legs. |
| Jib Structure & Length | Jib length: 1.5m–6m; optional fixed, foldable, or telescopic jib; high strength aluminum or steel construction. |
| Rotation Method | Manual rotation (with bearings) / electric rotation (low voltage DC or AC power) / limited rotation. |
| Hoisting Mechanism & Power | Chain electric hoist (0.25t–3t) / wire rope electric hoist (0.5t–3t); battery/AC dual power options. |
| Control Method | Handheld remote / wired pendant / push button station / smart APP control (optional). |
| Safety & Function Expansion | Overload protection, height limiters, tilt alarm, LED work lights, wireless weight display, safety warning tones. |
| Environmental Adaptation | Standard industrial version / outdoor anti rust version / cleanroom version / low noise version / explosion proof version (hazardous environments). |
Why Choose Us?
We possess over 15 years of dedicated experience in the lifting equipment industry, supported by mature and reliable technology.
All our products are certified with CE and ISO, ensuring full compliance with international quality and safety standards.
Our designs are fully customizable to adapt to a variety of working conditions, spatial constraints, and operational environments.
Every unit undergoes rigorous testing prior to shipment, guaranteeing stable performance and safety compliance.
We offer professional technical guidance and comprehensive after-sales service, providing continuous value throughout the product lifecycle.
Solution Consultation
We provide column-mounted jib crane structural selection, installation position optimization, and control system configuration recommendations based on your working radius, lifting height, usage frequency, and site conditions. Please share your workstation layout or site photos—we will recommend the most suitable light-load handling solution for you.
We don’t just provide products—we deliver safe, efficient, and sustainable lifting solutions built to last.
