Description
Flexible Relocation · Ready to Use · Zero Floor Occupation · Expert in Wall Following Lifting

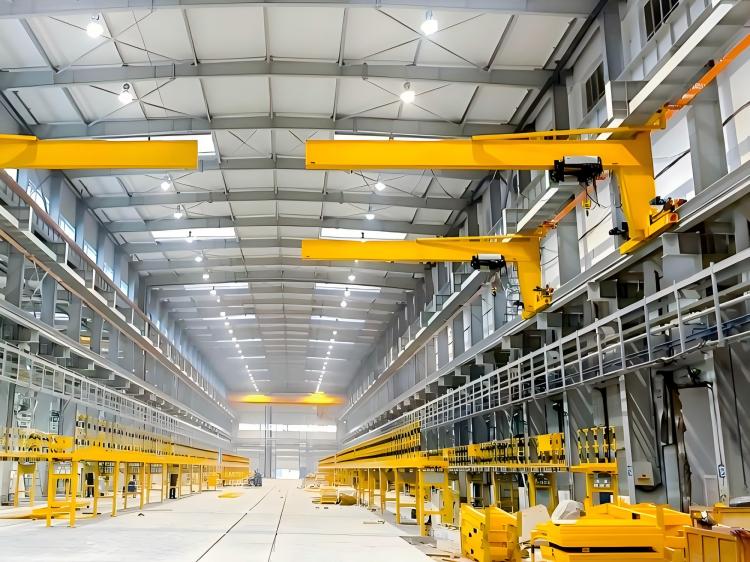

The mobile wall mounted jib crane is an innovative lifting device that combines a wall mounted jib crane with a mobile chassis, offering both the vertical space advantages of wall installation and the flexible deployment capabilities of mobile equipment. Using high strength rails or sliding channel systems, it can move horizontally along wall mounted tracks or relocate entirely via its chassis, achieving “one machine, multi point coverage.” It is suitable for workshops, warehouses, and maintenance sites where frequent position changes are needed and space is limited.
Advantages
The jib can move horizontally along wall mounted tracks (typically 3-10 meters), covering multiple workstations with a single unit, reducing duplicate equipment investment.
Fully utilizes vertical wall space without floor aisles or work areas, keeping the site tidy and unobstructed.
Manual or electric drive for relocation; equipped with quick lock devices enabling workstation within 30 seconds and secure locking.
Can be installed via pre mounted wall tracks or as a complete mobile chassis system, requiring minimal structural modifications, suitable for old-plant retrofits.
Wall load capacity professionally calculated; features self-locking fall-prevention and overload protection for safe, reliable operation.
Application
- Multi Station Assembly Workshops: Moves along workshop walls to provide component lifting support for different workstations.
- Warehouse Racking Areas:Moves on tracks along rack walls to assist with multiple storage-location access, improving picking efficiency.
- Equipment Maintenance Corridors:Moves along walls adjacent to equipment rows to provide lifting services for multiple machines during maintenance.
- Laboratories & Inspection Lines:Moves along walls beside lab benches or inspection equipment to assist with instrument and sample handling.
- Exhibition & Display Venues:Moves along exhibition walls for display setup, lighting adjustment, and lifting operations.
Customization Options
| Movement Method & Range | Wall-track type (track length 3-15 meters) / integrated chassis mobile type (with casters ). |
| Jib Structure & Length | Jib length: 1-6 meters; optional fixed, foldable, or telescopic jib; high-strength steel or aluminum alloy construction. |
| Drive & Movement Control | Manual movement / electric chain-wheel drive / rack-and-pinion electric drive; equipped with wireless remote or wall-mounted control panel. |
| Hoisting Mechanism | Chain electric hoist (0.25-2 tons) / wire rope electric hoist (0.25-5 tons); single-speed or VFD control options. |
| Safety & Function Expansion | Movement limit protection, overload alarm, anti-fall ratchet, LED lighting, weight display, safety conductor rail power supply. |
| Installation Adaptation Solutions | Concrete wall installation kit / steel-structure wall installation kit / adjustable rail support system. |
| Environmental Adaptation | Standard industrial type / anti-corrosion type (hot-dip galvanized) / cleanroom type / explosion-proof type (Exd). |
Why Choose Us?
We possess over 15 years of dedicated experience in the lifting equipment industry, supported by mature and reliable technology.
All our products are certified with CE and ISO, ensuring full compliance with international quality and safety standards.
Our designs are fully customizable to adapt to a variety of working conditions, spatial constraints, and operational environments.
Every unit undergoes rigorous testing prior to shipment, guaranteeing stable performance and safety compliance.
We offer professional technical guidance and comprehensive after-sales service, providing continuous value throughout the product lifecycle.
Solution Consultation
We provide column-mounted jib crane structural selection, installation position optimization, and control system configuration recommendations based on your working radius, lifting height, usage frequency, and site conditions. Please share your workstation layout or site photos—we will recommend the most suitable light-load handling solution for you.
We don’t just provide products—we deliver safe, efficient, and sustainable lifting solutions built to last.
