Description
High-Strength · Safety-Certified · All Crane Hook Types · Custom Hook Block Solutions

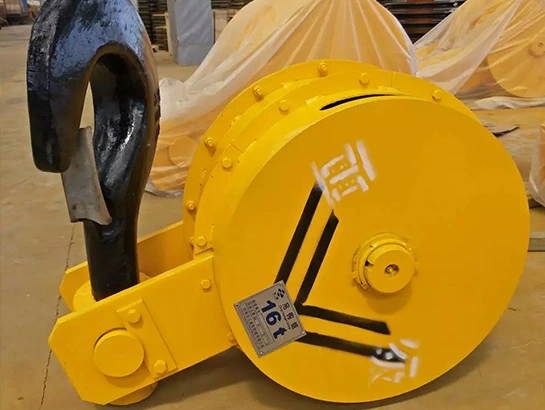

A crane hook block is the complete lower load-bearing assembly of a hoist mechanism, integrating a forged steel crane hook, pulley sheave system, cross beam, side plates, and bearings into a single structural unit. Our hook blocks are purpose-engineered for Electric Overhead Traveling (EOT) cranes and gantry cranes across a full range of industrial applications.
Manufactured at our own facility in China and exported directly to customers in 60+ countries, our hook blocks cover SWL from 1T to 500T with all major crane hook types available — single hook, double hook, swiveling hook, ramshorn hook, and grab hook. Every unit ships with a crane hook safety latch as standard, undergoes static proof load testing at 2× SWL, and is supplied with full certification documentation.
Whether you are specifying a new crane build, sourcing OEM-compatible replacement blocks, or developing a crane hire fleet, our factory-direct supply chain delivers engineering quality at competitive pricing — without distributor margins.
Advantages
Closed-die forged from 34CrNiMo6 or equivalent high-strength alloy steel. Superior fatigue resistance and toughness versus cast alternatives. Full material traceability (EN 10204 3.1 certs).
Every crane hook includes a spring-loaded forged safety latch. Meets EN 13157, ASME B30.10, and AS 4991 latch device requirements. Non-latched hooks only on documented exemption.
Sheave grooves machined to exact rope diameter tolerance. Reduces rope wear and extends wire rope service life. Groove profiles available for 6×19 and 6×37 rope constructions.
Every assembled hook block is static proof-loaded at twice its Safe Working Load before shipment. Load test certificate issued with each unit as standard.
Designed to FEM 1.001 and DIN 15401/15402. Duty classes M1 through M8 specifiable at order stage. ASME B30.2 configurations available for US/Canadian projects.
We manufacture and sell direct. No distributor, no agent markup. Typical saving versus channel pricing: 15%–35%. Volume pricing tiers available for crane OEMs and EPC contractors.
Dimensionally compatible replacements for Demag, Konecranes, ABUS, SWF, Street Crane, and other major OEM brands. Provide part number or dimensions for compatibility confirmation.
Wooden case export packing with anti-rust treatment. FOB, CIF, DDP terms. Experience with LC, T/T, and open account. Shipping documents in English, Spanish, or Arabic on request.
Application
- Steel & MetallurgyLadle hooks, coil hooks, and ramshorn assemblies for casting, rolling, and forge press cranes.

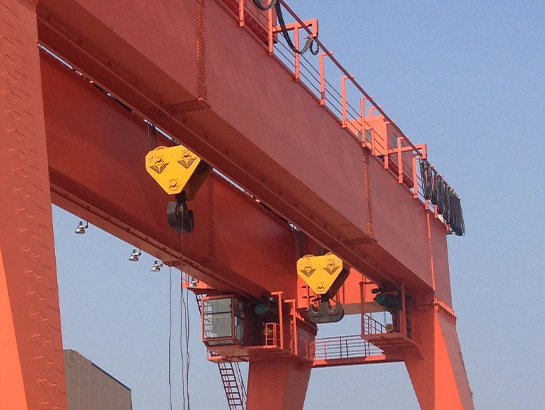

- Shipbuilding & PortMarine-grade hook blocks for gantry, floating, and container terminal crane applications.

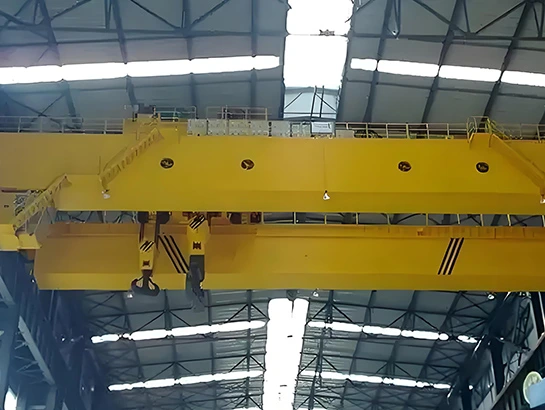

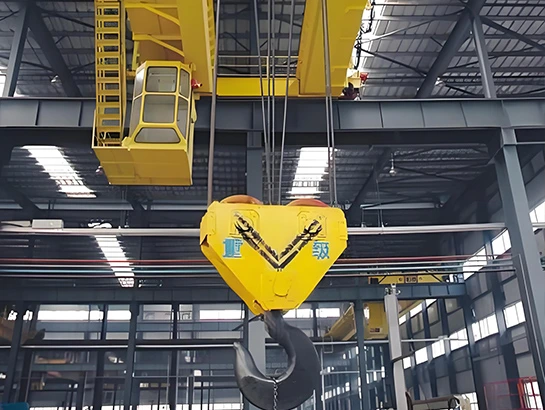

- Heavy ManufacturingGeneral EOT crane hook blocks for automotive, press shop, and industrial plant environments.
- Construction & PrecastGantry crane hook blocks for precast concrete yards and structural steel erection sites.
- Power GenerationHigh-duty hook blocks for turbine halls, transformer lifting, and power plant EOT cranes.
- Oil, Gas & PetrochemicalExplosion-proof rated hook blocks for hazardous area cranes in refineries and offshore platforms.
- Mining & QuarryingRobust assemblies for mine shaft cranes, ore bridges, and underground overhead hoists.
- Water TreatmentCorrosion-resistant hook blocks (stainless hardware) for wastewater and desalination plant cranes.
Customization Options
Our engineering team can configure hook blocks to project-specific requirements. Common options include:
- Overload Protection Device — Integrated load cell or slip-clutch limiter. Required by many CE crane standards.
- Marine & Anti-Corrosion Coating — Hot-dip galvanizing or multi-layer marine epoxy (C4/C5-M rating) for coastal and offshore installations.
- Stainless Steel Hardware — Grade 316 bolts, pins, and latch components for corrosive food, chemical, or marine environments.
- Low-Temperature Alloy Grade — Cryogenic-rated materials to −40°C for Arctic, cold-store, and LNG facility cranes.
- Swivel Locking Mechanism — Field-selectable swivel lock pin for precision load placement operations.
- Third-Party Inspection — Factory witness testing by SGS, Bureau Veritas, Lloyd’s Register, DNV, or TÜV. Coordination included.
- Custom RAL Color Coding — Per ISO 9927 or customer SWL class color identification scheme.
- Combined Hook Block & Lifting Beam Assembly — For balanced lifting of long, wide, or structurally sensitive loads.
Why Choose Us?
Over 15 years dedicated to the design, manufacture, and supply of crane hooks, hook blocks, and complete crane lifting hook systems for OEM and aftermarket customers globally.
All products carry CE, ISO 9001, and EN 1677 certification — ensuring every crane hook, crane hook safety latch, and hook block assembly meets international safety standards.
From small swivel hooks to 500-ton double-hook block assemblies, we stock or manufacture the complete spectrum of crane hook types for every lifting application.
No hook block leaves our facility without documented proof-load and dimensional inspection — giving crane rental, hook crane service, and end-user customers total confidence.
Technical selection guidance, installation support, and after-sales service across the full product lifecycle — from specification to hook crane services crane rental programs.
Solution Consultation
Whether you need a single replacement crane hook, a complete hook block assembly for a new EOT or gantry crane, or a full fleet supply for hook crane service and crane rental operations — our engineering team is ready to help. Share your crane model, lifting capacity, working class, and operating environment and we will specify the correct crane hook types, WLL, and safety latch configuration for your exact application.
We don’t just supply crane hooks — we engineer safe, certified, and long-life lifting solutions for every crane with hook application.
