Description
Flexible & Efficient · Green & Energy-Saving · Intelligent Dispatch · All-in-One Container Yard Solution

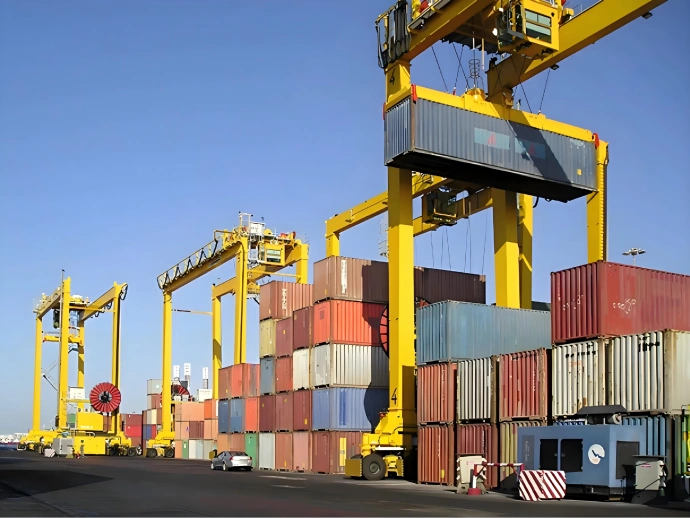

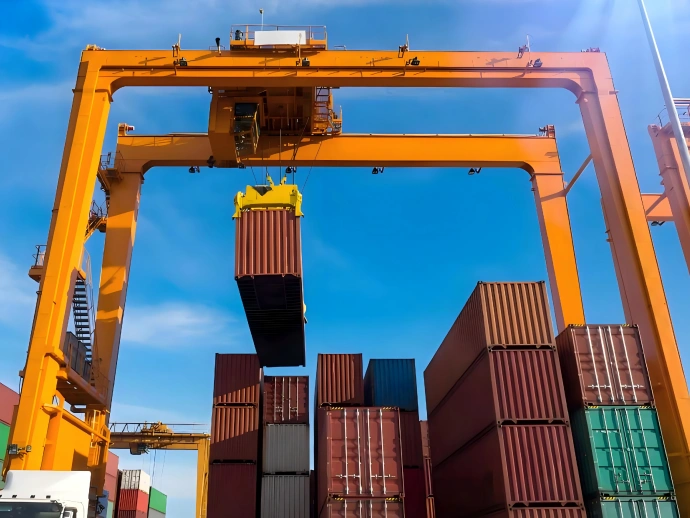

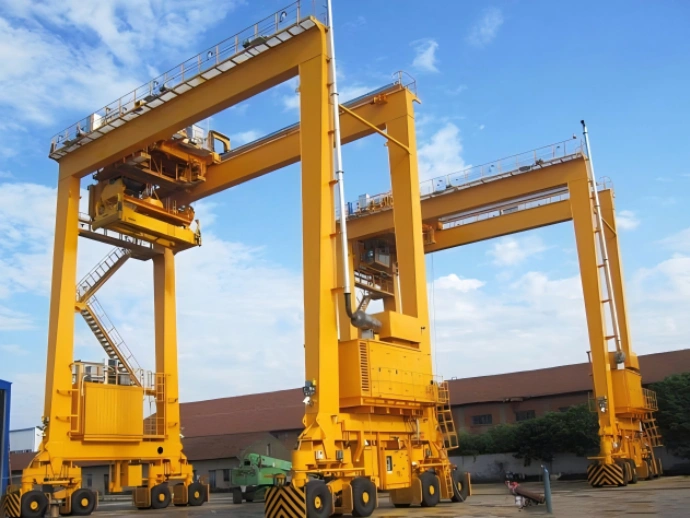

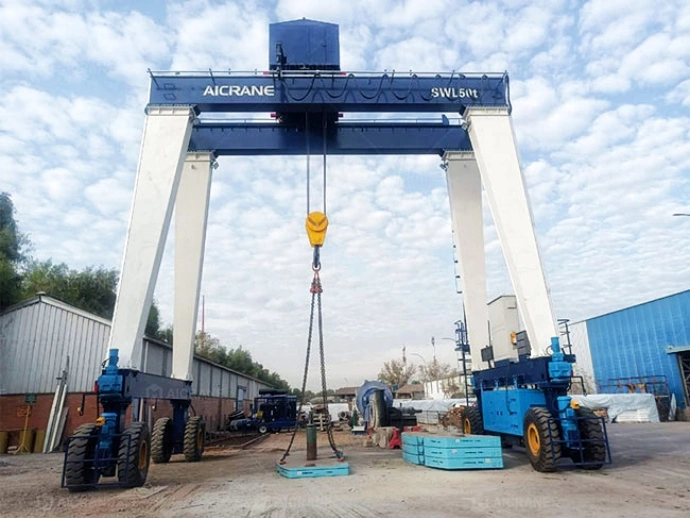

The RTG rubber-tired gantry crane is a highly efficient handling equipment designed specifically for container yards. Featuring a rubber-tired travel system, it can move and maneuver freely within the yard without the need for fixed rails. This crane offers strong cross-container handling capability, precise positioning, and flexible transfer between stacking areas. Equipped with intelligent control systems and energy recovery devices, it significantly improves yard operational efficiency while reducing operating costs, making it a mainstream yard solution for modern ports, railway container hubs, and logistics parks.
Advantages
Rubber-tired travel with a small turning radius allows quick transfer between container blocks.
Integrated automatic skew correction, container position scanning, and anti-sway positioning systems reduce single-cycle operation time to under 90 seconds.
Diesel-electric hybrid or full electric drive options with potential energy recovery systems reduce energy consumption by 40%.
Key components from international brands combined with fatigue-optimized structure design ensure a mean time between failures (MTBF) of ≥8,000 hours.
Seamless integration with terminal operating systems (TOS) supports step-by-step upgrade to unmanned operation systems.
Application

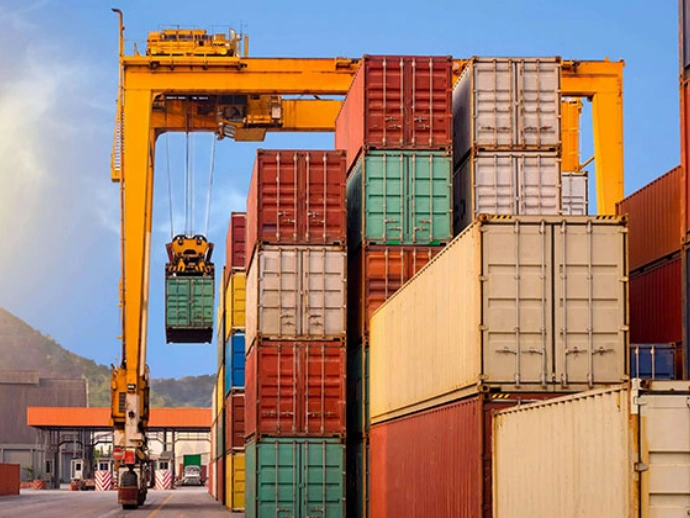

- Container Terminal Yards Stacking, sorting, truck loading/unloading, and straddle carrier对接 operations for import/export containers.
- Railway Container Central Stations Loading/unloading of container trains, yard slot management, and intermodal transfer operations.
- Inland Dry Ports & Logistics ParksContainer storage, distribution, stuffing, and cross-border e-commerce logistics operations.
- Multimodal Transport HubsTransshipment between maritime and railway containers, handling in container cleaning and repair yards.
- Special Container OperationsStacking and power supply management for refrigerated containers, tank containers, open-top containers, etc.
Customization Options
| Span & Lifting Height | Span options: 6+1/7+1/8+1 lanes; lifting height: 1-over-4 to 1-over-6; customizable stacking tiers. |
| Power System Type | Diesel generator set + electric / hybrid power / lithium battery pure electric / conductor rail power supply system. |
| Travel & Steering Control | 8-wheel/16-wheel all-wheel drive and steering; optional full hydraulic steering or electric servo steering; supports crab walking and diagonal travel modes. |

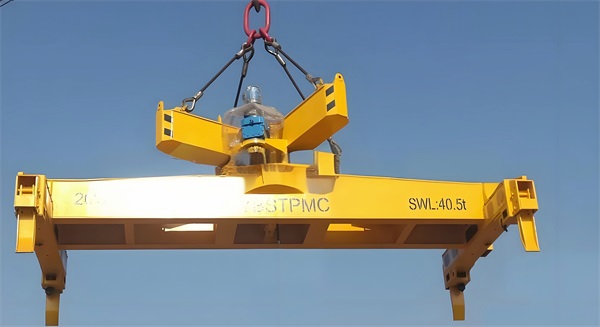

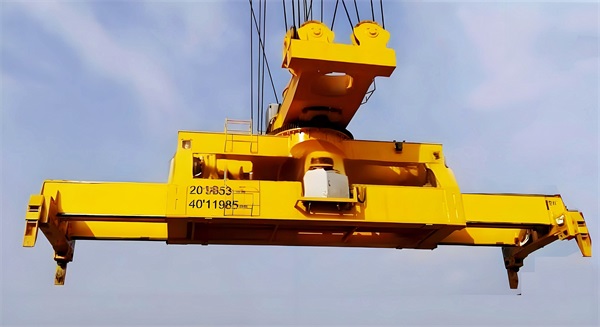

| Spreaders System | 20ft/40ft telescopic spreaders / twin 20ft spreaders / intelligent recognition spreaders |

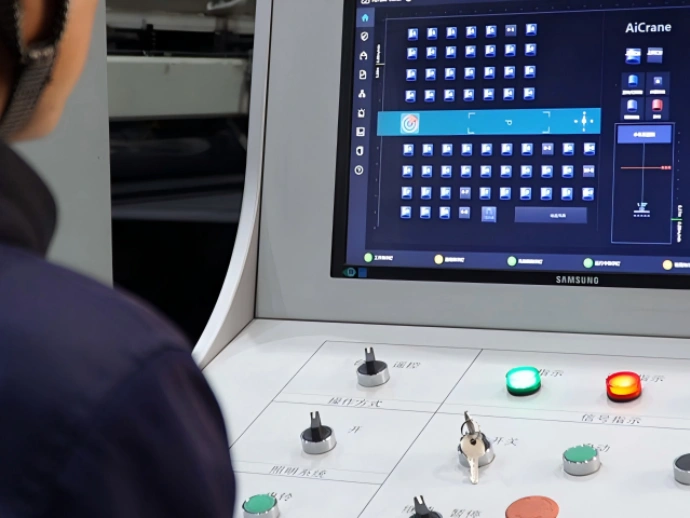

| Intelligent Function Modules | Automatic slot management, truck guiding system, remote monitoring platform, digital twin operation and maintenance system. |
| Safety & Environmental Configurations | Anti-collision systems, stack profile detection, wind speed monitoring, light guidance, |
| Structural Type Options | Single cantilever / double cantilever, high-profile / low-profile, with weighing and tilt protection systems. |
Why Choose Us?
We possess over 15 years of dedicated experience in the lifting equipment industry, supported by mature and reliable technology.
All our products are certified with CE and ISO, ensuring full compliance with international quality and safety standards.
Our designs are fully customizable to adapt to a variety of working conditions, spatial constraints, and operational environments.
Provides end-to-end services from RMG selection and yard layout optimization to intelligent dispatch system integration.
We offer professional technical guidance and comprehensive after-sales service, providing continuous value throughout the product lifecycle.
We provide RTG selection and configuration, yard traffic flow optimization, and intelligent management system solutions based on your yard scale, operational workflow, container types, and automation goals. Please share your yard layout plan or schedule an on-site survey — we will create an efficient, green, and intelligent container yard solution for you.
We don’t just provide products—we deliver safe, efficient, and sustainable lifting solutions built to last.
