Description
Heavy Duty Collaboration · Intelligent Precision Adjustment · Modular Assembly · Core Equipment for Modern Shipbuilding

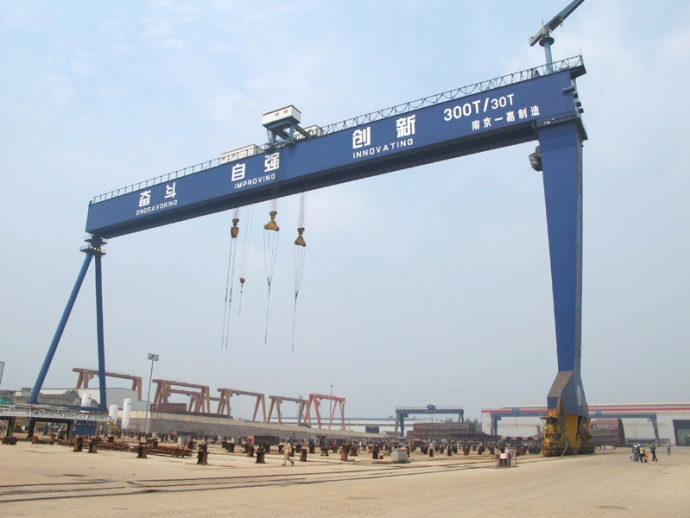

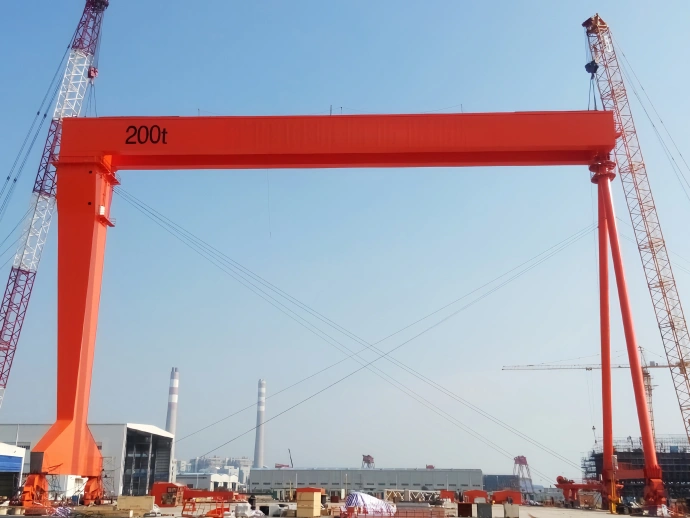

The shipbuilding gantry crane is a high performance lifting equipment specifically designed for ship construction and large steel structure assembly. It features ultra high lifting capacity, extra long span, multi lift point synchronization, and three dimensional precise positioning capabilities. This crane meets the demands of heavy duty precision operations such as hull block lifting, large module joining, and outfitting component installation, serving as key infrastructure for modern shipyards to achieve efficient, safe, and digitalized production.
Advantages
Lifting capacity up to 50–2000 tons, supporting synchronous hoisting with multiple lift points and load balancing control.
Equipped with laser ranging, sensors, and closed loop control for millimeter level positioning and anti sway hook stabilization.
Supports dual trolley, dual girder, or multi mechanism operation for block turning, rotation, and precise.
Main girders fabricated in segments for, allowing easy adjustment of span and lifting height according to shipyard layout.
Integrated operation data collection, equipment health monitoring, and predictive maintenance systems enhance operational safety and efficiency.
Application
- Hull Block Manufacturing AreaLifting, turning, positioning, and temporary stacking of large blocks.
- Building Berth & Dry Dock Joining AreaTotal-block assembly of ultra-large segments, main-engine lifting, superstructure lifting.
- Outfitting Wharf & Platform: Installation and of ship equipment, piping, and electrical modules.
- Steel Structure Manufacturing BaseAssembly and transfer of offshore-platform modules, bridge components, large storage tanks.
- Ship Repair & Conversion YardsOld-ship dismantling, new-component replacement, lifting of local structures.
Customization Options
| Lifting Capacity & Span | Lifting capacity: 50–2000 tons; span: 50–200 meters; supports non standard extra wide spans and ultra high lifting designs. |
| Lift Point & Lifting Attachment System | Single/dual/quad lift point systems; equipped with hydraulic lifting beams, spreader beams, clamps; supports automatic hook on/off and rotation. |
| Drive & Control Method | AC variable frequency multi motor drive; PLC+industrial PC intelligent control; supports remote operation and digital twin systems. |
| Structural Configuration | Double girder box structure, single girder truss structure, high low rail design, cantilever extension systems. |
| Safety Monitoring Systems | 3D anti collision, real time load monitoring, structural stress monitoring, strong wind, and automatic anchoring. |
| Environmental Adaptation Configurations | Coastal grade anti corrosion treatment, explosion proof electrical, low temperature resistant hydraulic systems, nighttime and low light lighting. |
| Intelligent Function Extensions | Automatic path planning, multi crane scheduling, operation process recording and playback, equipment health management cloud platform. |
Why Choose Us?
We possess over 15 years of dedicated experience in the lifting equipment industry, supported by mature and reliable technology.
All our products are certified with CE and ISO, ensuring full compliance with international quality and safety standards.
Our designs are fully customizable to adapt to a variety of working conditions, spatial constraints, and operational environments.
Offers one-stop services from planning and design, manufacturing and installation, to operation, maintenance, and upgrades.
We offer professional technical guidance and comprehensive after-sales service, providing continuous value throughout the product lifecycle.
We provide complete solutions including crane selection, rail layout, control integration, and safety assessment based on your shipyard layout, block weights, process routes, and automation goals. Please share your shipyard layout plan or schedule an on site survey—we will design an efficient, reliable, and intelligent shipbuilding lifting system for you.
We don’t just provide products—we deliver safe, efficient, and sustainable lifting solutions built to last.
