Description
Universal & Efficient · Structurally Stable · Intelligent Control · All Scenario Heavy Duty Handling Solution

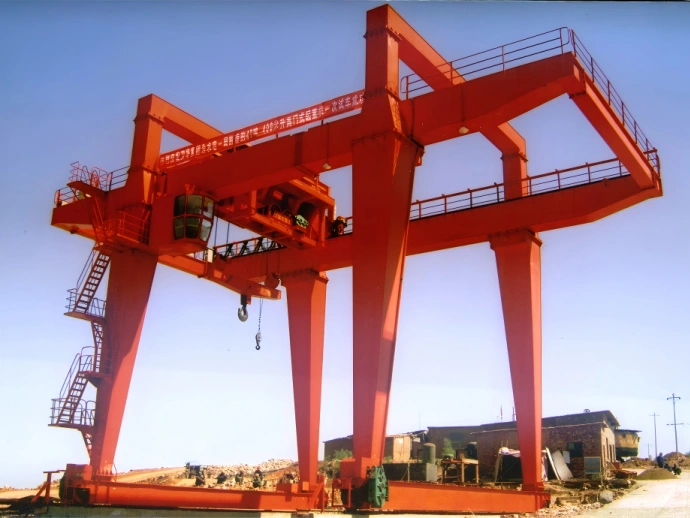

The MG U double girder gantry crane is a universal heavy duty handling equipment featuring a box type double girder and optimized U type gantry structure, combining high strength, large span, and excellent wind resistance. Suitable for various outdoor storage yards, logistics parks, steel plants, and heavy manufacturing bases, this crane efficiently performs lifting, transfer, and stacking tasks for heavy materials such as containers, steel products, bulk cargo, and large equipment.
Advantages
U type gantry with box type double girders supports spans of 10–50 m and rated loads of 5–300 t, with wind resistance up to Level 7 or higher.
Full VFD drive with anti sway and positioning systems ensures smooth operation and positioning accuracy of ±10 mm.
Supports hooks, grabs, electromagnetic lifters, container spreaders, etc., meeting diverse material handling needs.
Integrated overload protection, wind speed monitoring, anti collision systems, remote diagnostics, and video surveillance.
High efficiency motors and energy recovery design reduce energy consumption by over 20%, with a structural life ≥30 years.
Application

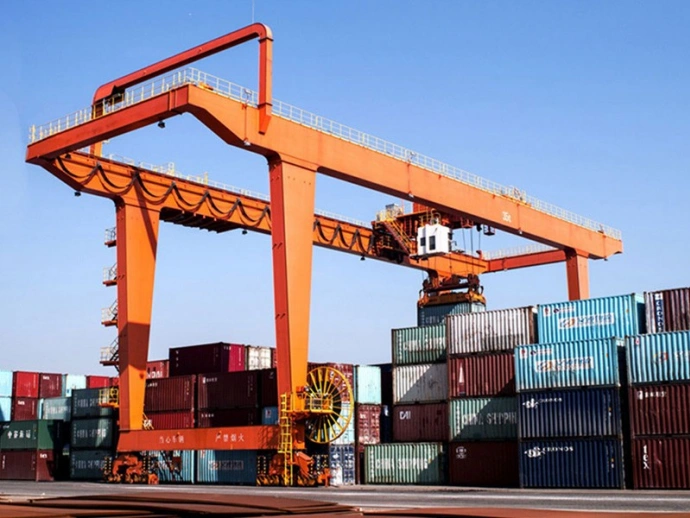

- Large Logistics Yards Storage and handling of containers, steel, timber, and other materials.

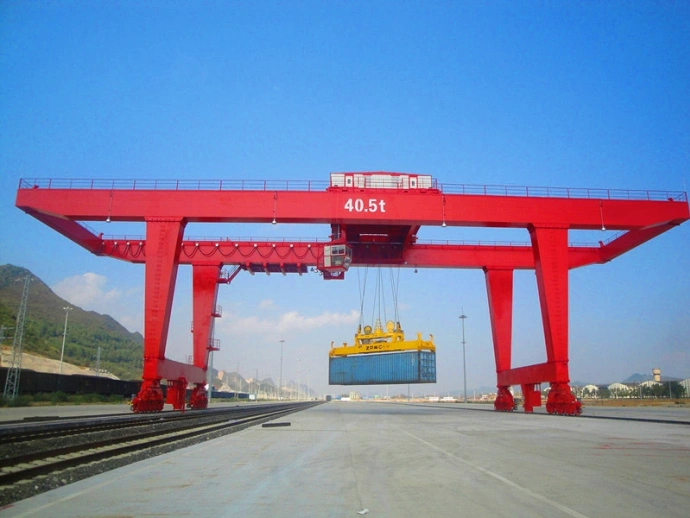

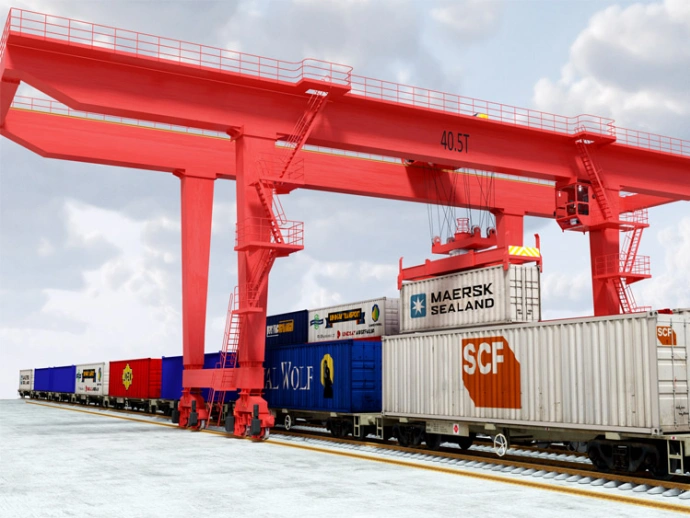

- Railway Freight Yards Handling of long/heavy cargo and bulk materials on dedicated railway lines.
- Steel & Non-Ferrous PlantsOutdoor storage and transfer of billets, coils, profiles, etc.
- Heavy Equipment ManufacturingAssembly of large components such as wind power equipment, engineering machinery, and pressure vessels.

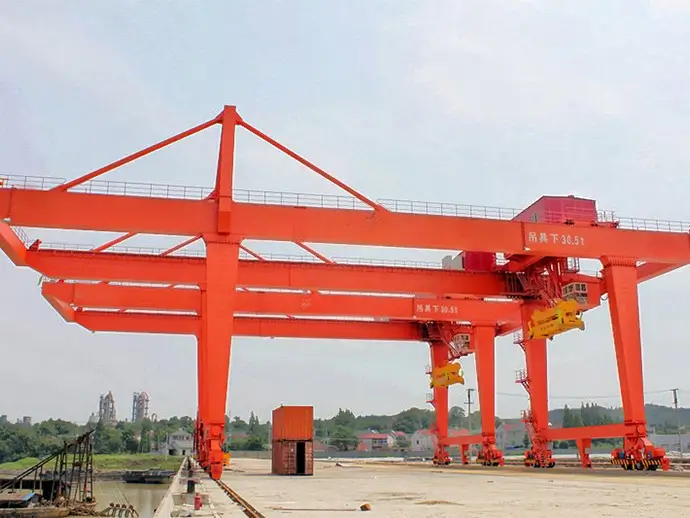

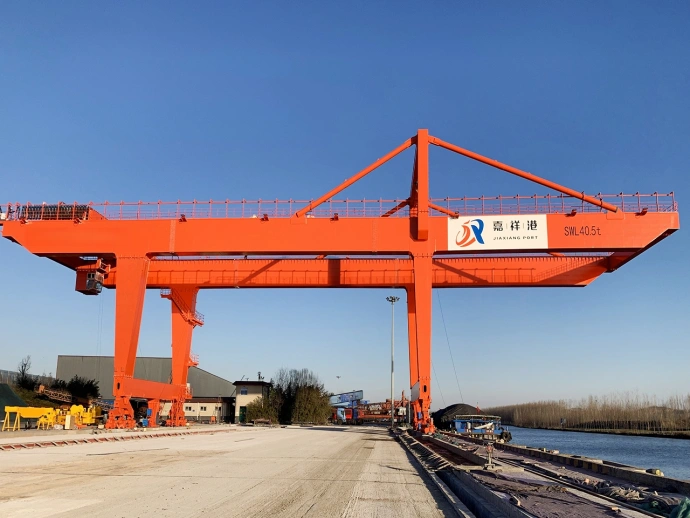

- Ports & Multimodal HubsContainer transshipment, bulk cargo handling, and equipment lifting.
Customization Options
| Span & Lifting Height | Span: 18–35 m; lifting height: 6–20 m, with support for non standard large span and extra high designs. |
| Lifting Attachment System | Hooks, grabs, electromagnetic lifters, container spreaders, multi tine grabs, etc., with optional quick change systems. |
| Travel Mechanism Type | Double rail / single rail travel; tire mounted / adaptable to various ground conditions. |
| Electrical & Control | PLC + VFD control, remote centralized control, automated dispatch, intelligent data management modules. |
| Safety & Environmental Configuration | explosion proof design, high temperature adaptation, video surveillance, laser anti collision, wind speed alarms. |
| Structural Variants | U type gantry, A type legs, L type legs, slewing cantilever, dual trolley cooperative systems, etc. |
Why Choose Us?
We possess over 15 years of dedicated experience in the lifting equipment industry, supported by mature and reliable technology.
All our products are certified with CE and ISO, ensuring full compliance with international quality and safety standards.
Our designs are fully customizable to adapt to a variety of working conditions, spatial constraints, and operational environments.
Undertake non standard, oversized, and complex condition gantry crane projects, providing end to end services from design and manufacturing to installation and commissioning.
We offer professional technical guidance and comprehensive after-sales service, providing continuous value throughout the product lifecycle.
We provide structural selection, lifting attachment configuration, intelligent control system integration, and full lifecycle operational support based on your material characteristics, workflow, site conditions, and automation goals. Please share your project parameters or schedule an on site survey—we will build a safe, efficient, and intelligent heavy duty handling system for you.
We don’t just provide products—we deliver safe, efficient, and sustainable lifting solutions built to last.
