Description
Wall-attached Installation · Ultimate Space Utilization · Light-load Flexible Handling · Expert in Compact Space Lifting

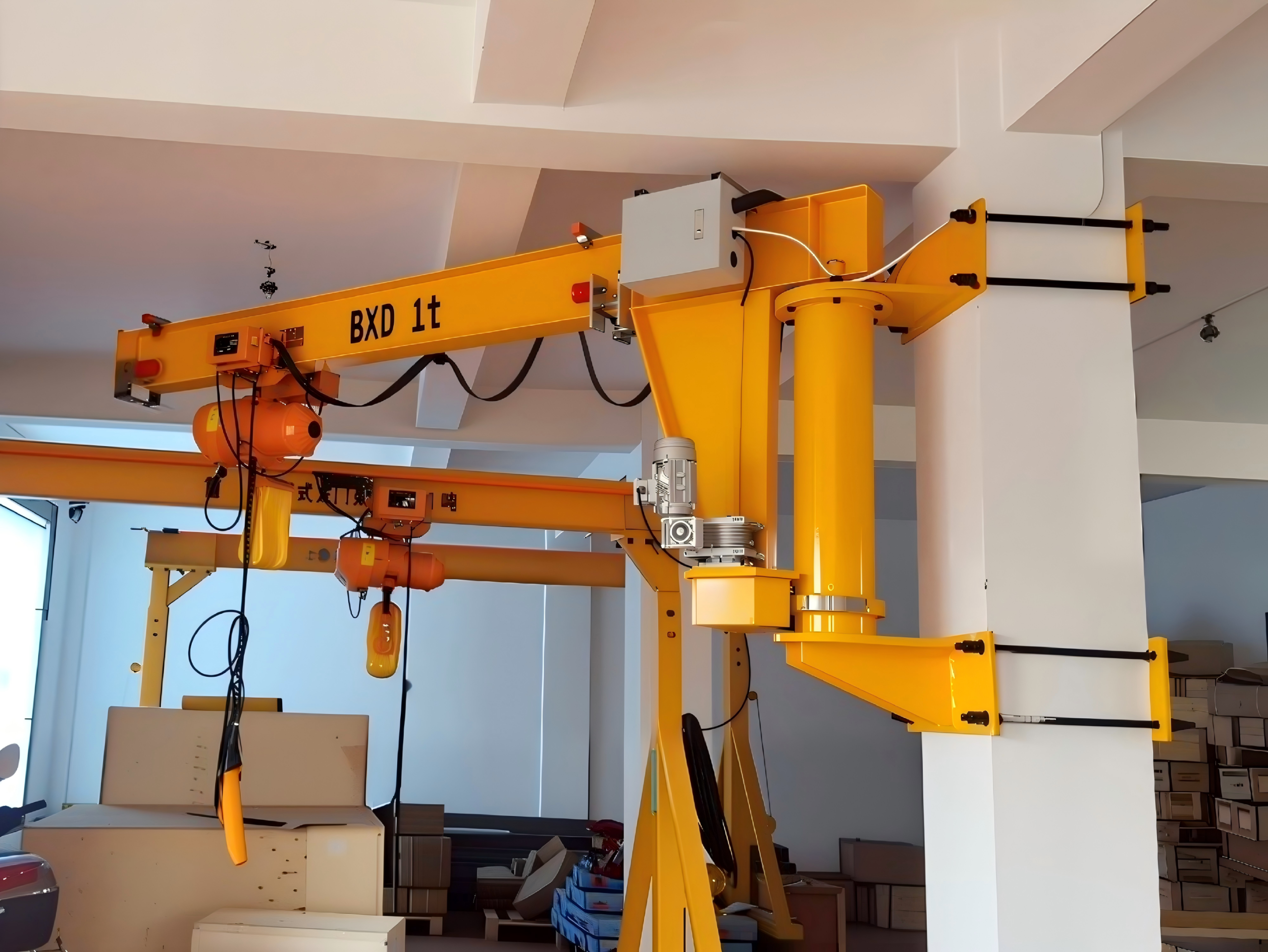

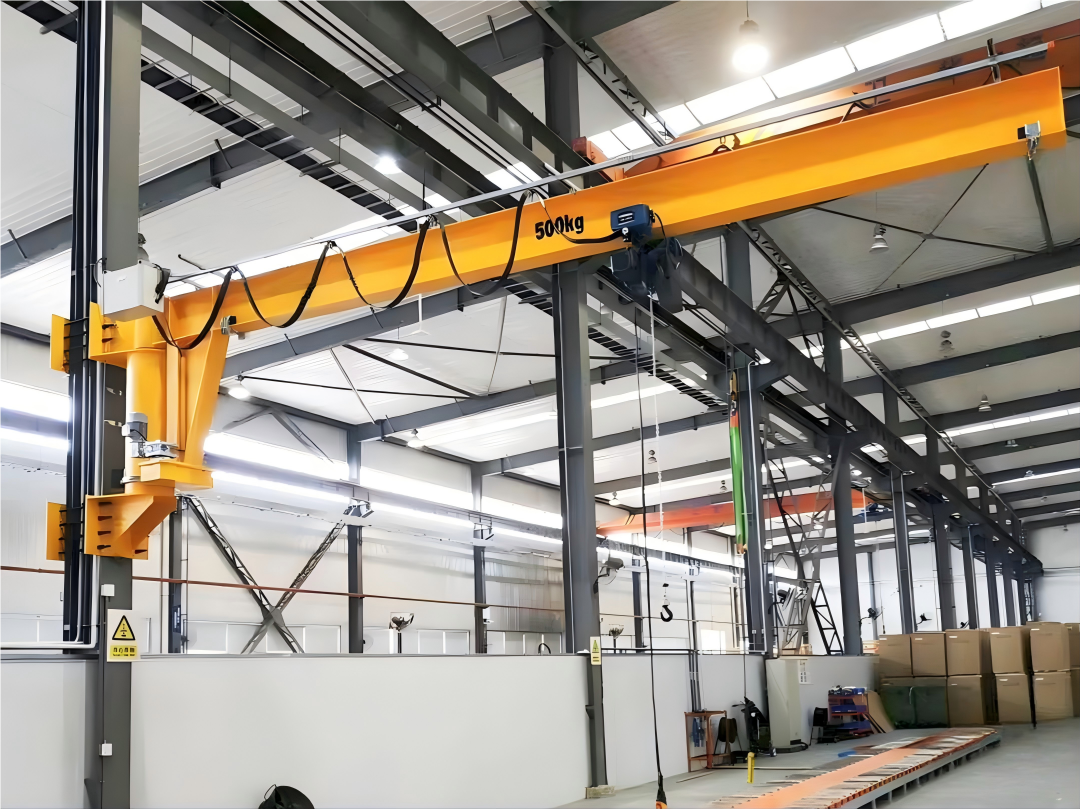

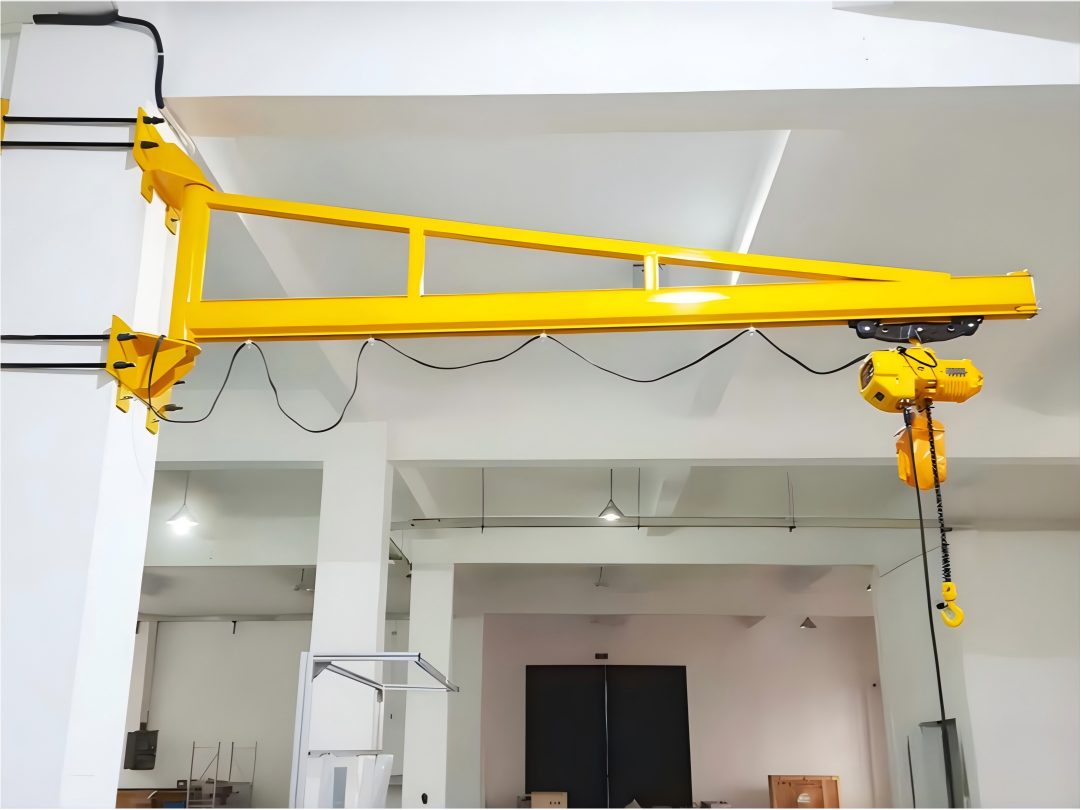

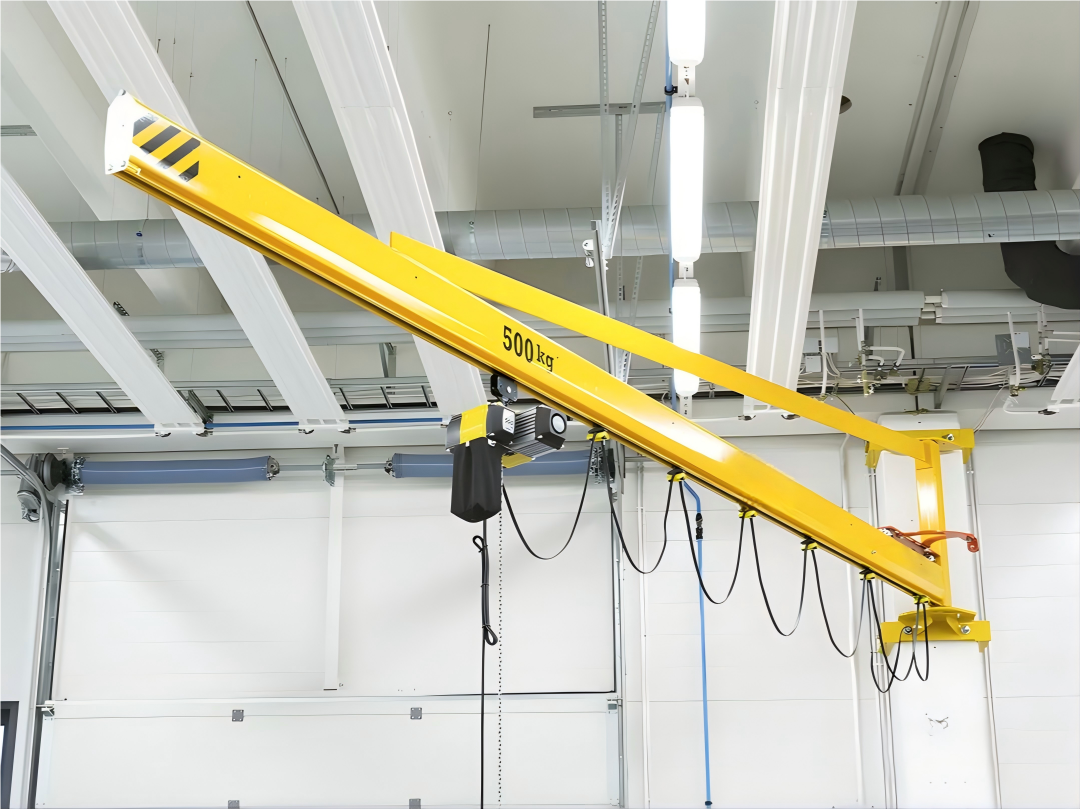

The wall-mounted jib crane is a light-duty lifting device directly fixed to walls or columns, consisting of a wall bracket, jib beam, rotation mechanism, and electric hoist. Its jib can rotate 180°-270°, making full use of vertical wall space to provide an efficient and economical material handling solution for narrow areas such as production line edges, warehouse corners, and equipment-intensive zones. With easy installation, minimal footprint, and flexible operation, this product is particularly suitable for light-load lifting scenarios in space-constrained environments.
Advantages
Direct wall attachment avoids of floor and overhead travel paths, especially suitable for space-tight production and storage environments.
Can be fixed to walls or structural columns using embedded plates or high-strength anchor bolts, with short installation time and minimal site modifications.
Large jib rotation angle (typically 180°-270°) covers working areas, with operating radii up to 2-6 meters.
Simple structure and material savings result in investment and maintenance costs far lower than overhead or column-mounted cranes.
Wall load capacity professionally calculated; equipped with mechanical limits, overload protection, and anti-detachment devices to ensure operational safety.
Application
- Compact Production Workshops:Material supply at assembly line edges, machine loading/unloading, part handling at welding stations.
- Warehouse Racking Areas & Aisles: Light-load beside racks, auxiliary handling in packaging zones, narrow-aisle operations.
- Equipment Maintenance & Service Points: Tool and spare part lifting near equipment, engine repair, instrument disassembly assistance.
- Laboratories & Inspection Stations: Laboratory instrument lifting, sample transfer, testing equipment positioning.
- Commercial & Public Service Spaces: Small repairs in parking areas, exhibition setup assistance, stage equipment lifting support.
Customization Options
| Mounting & Fixation Method | Wall-embedded plate fixation / steel column clamp fixation / mobile wall-mounted base. |
| Jib Structure & Length | JibJib length: 1m–5m; optional straight, folded, or telescopic jib structures; materials include square tubes or I-beams. |
| Rotation Method | Manual rotation (with beari180°/270° rotation (with limiters); manual rotation / electric rotation (with VFD control). |
| Hoisting Mechanism & Power | Chain electric hoist (0.1t–2t) / wire rope electric hoist (0.25t–3t) / manual chain hoist. |
| Control Method | Pendant control / wireless remote control / push-button station control / intelligent fixed-point control. |
| Safety & Function Expansion | Overload protection, Height limiters, overload protection, rotation limiters, lighting, weight display, safety conductor rail power supply. |
| Environmental Adaptation | Standard industrial type / anti-corrosion type (galvanized/powder-coated) / explosion-proof / cleanroom type / low-temperature resistant type. |
Why Choose Us?
We possess over 15 years of dedicated experience in the lifting equipment industry, supported by mature and reliable technology.
All our products are certified with CE and ISO, ensuring full compliance with international quality and safety standards.
Our designs are fully customizable to adapt to a variety of working conditions, spatial constraints, and operational environments.
Every unit undergoes rigorous testing prior to shipment, guaranteeing stable performance and safety compliance.
We offer professional technical guidance and comprehensive after-sales service, providing continuous value throughout the product lifecycle.
Solution Consultation
We provide product selection, installation fixation, and safety assessment based on your wall conditions, operating radius, load requirements, and usage environment. Please share site photos or layout plans—we will tailor the most suitable wall-mounted lifting solution for you.
We don’t just provide products—we deliver safe, efficient, and sustainable lifting solutions built to last.
